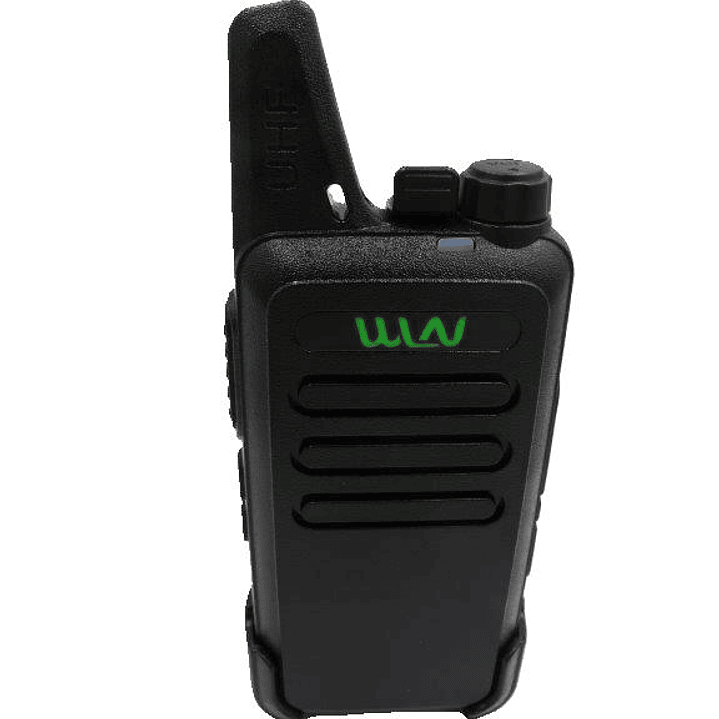

Radio Wlan KD-C1 con logo Voxer UHF 400-470 Mhz Programable


El KD-C1 es un radio semi profesional, de funcionamiento estable y desempeño confiable. Funciones adicionales tales como reduccion de ruido hacen de este equipo una excelente alternativa para el trabajo.

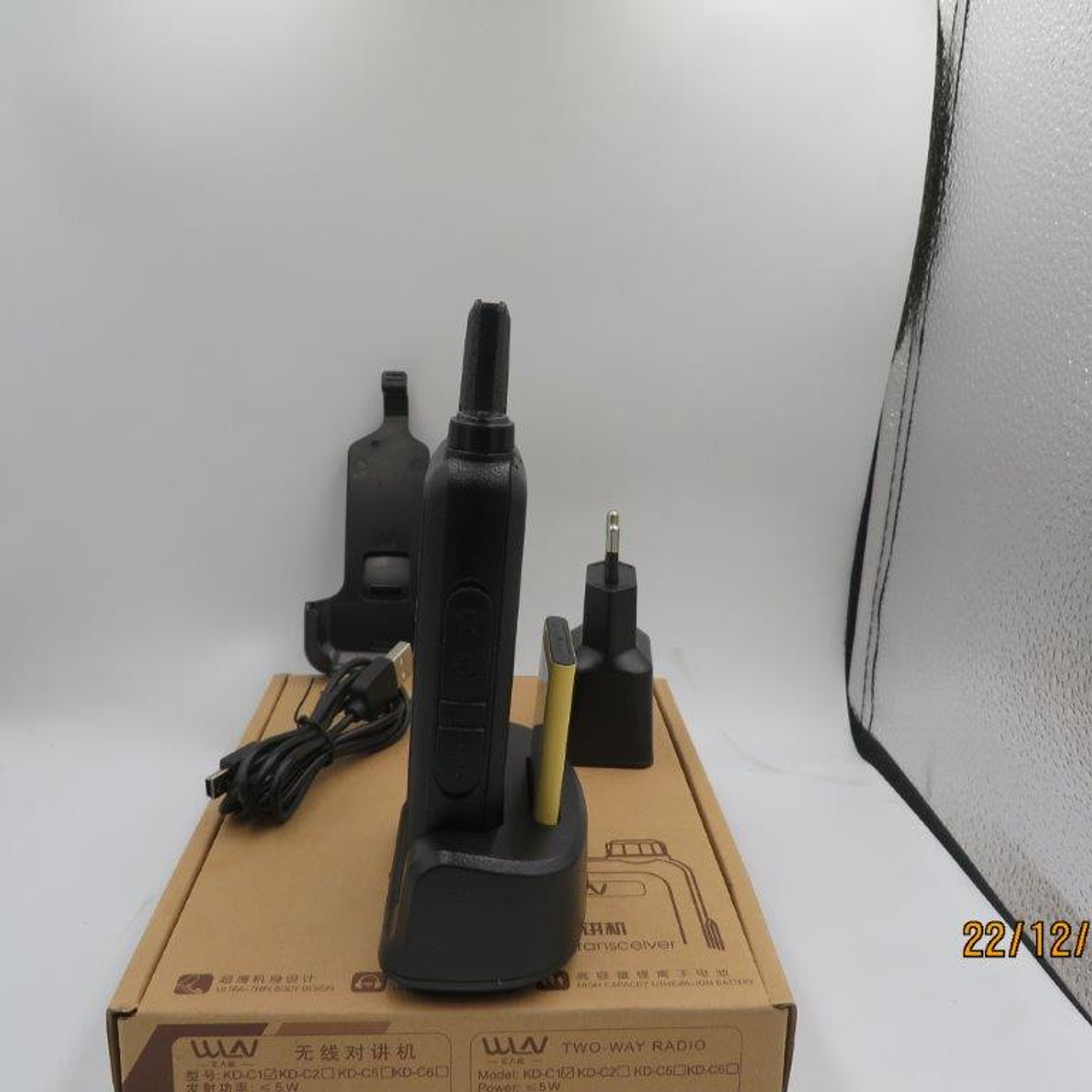

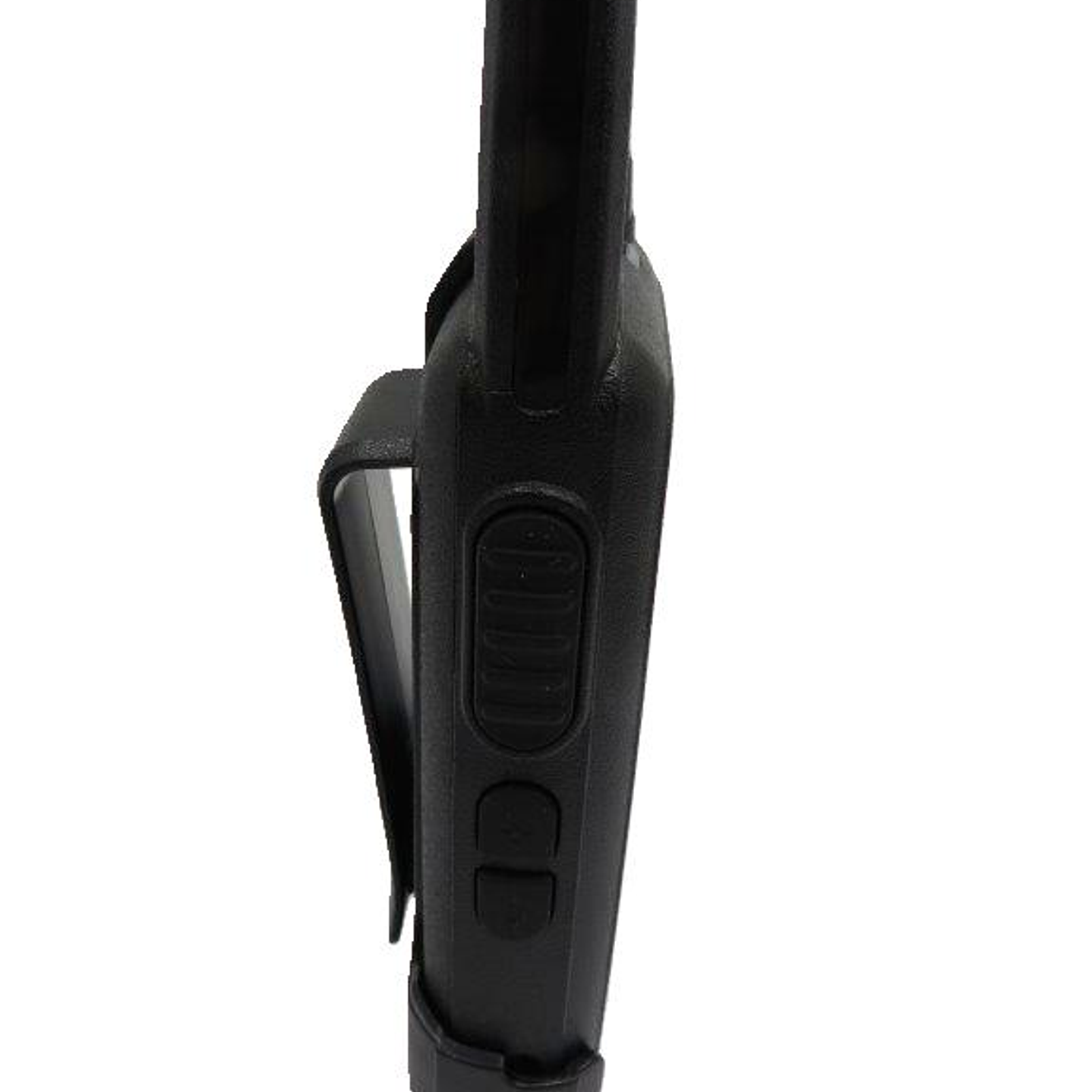

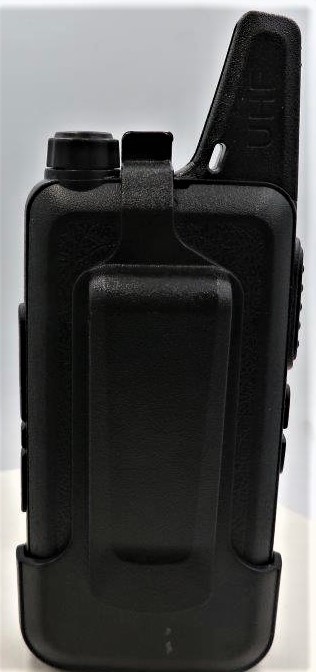

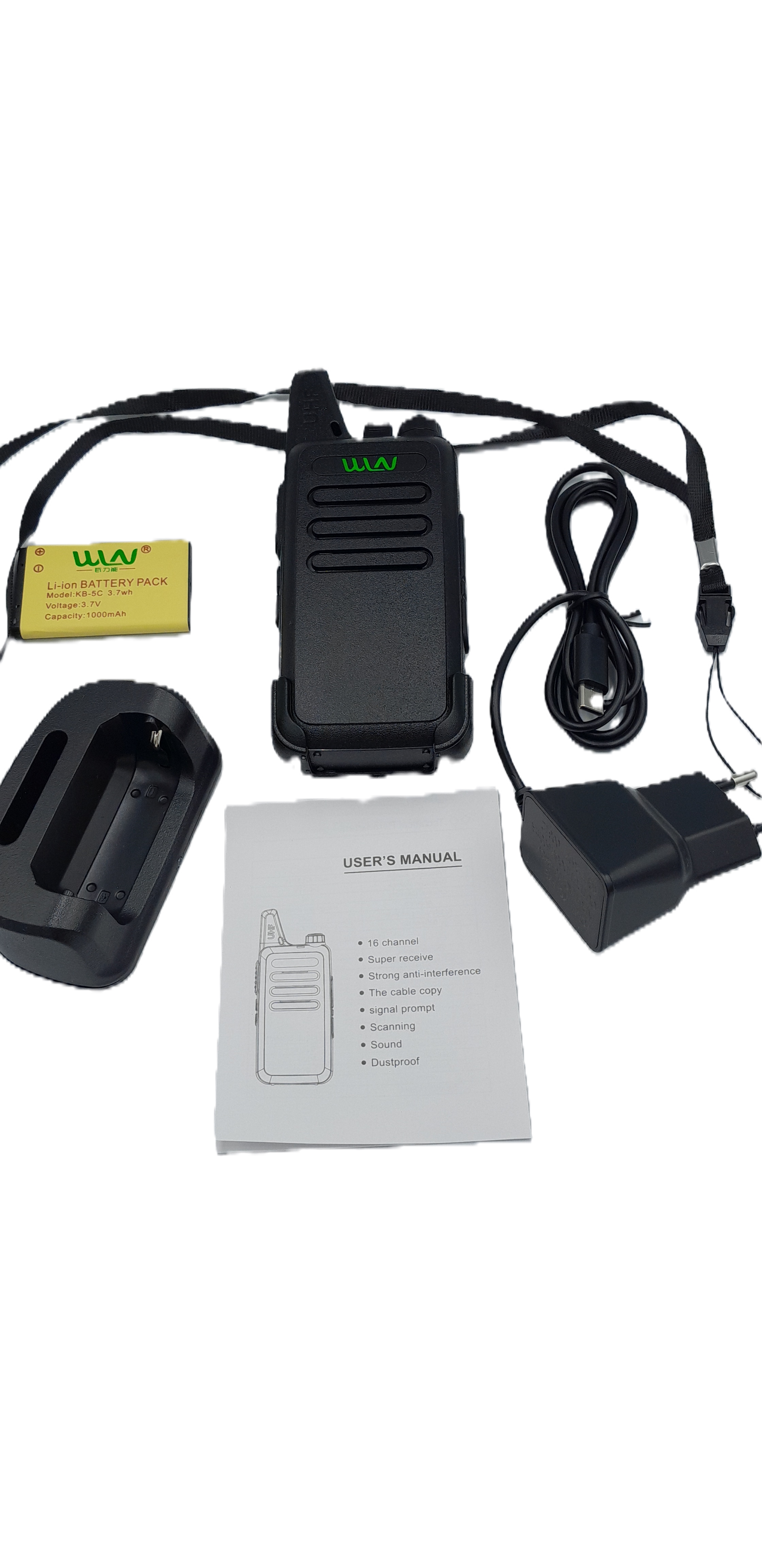

Incluye: Radio con antena incorporada, batería, cargador, clip para el cinturón. Disponible en colores negro

Ficha Técnica:

1) Output: 5W

2) Frequency: 400.00-470.MHz

3) 16 Channels

4) PC Program

5) 50 CTCSS and 210 DCS Codes

6) Battery Saving

7) VOX "Voice Operated Transmitting" Function

8) Busy Channel Lock

9) Low Battery Warning

10) Over Voltage or Low Voltage Protection

11) Channel Monitor

12) TOT (Time-out Timer)

13) Scrambling Function

14) Noise Reduction

15) Scanning Function

16) Dimension: 97x57x29 mm

Unity Section:

- Frequency Range: 400.00- 470.00MHz

- Storage Channel16

- Rated voltage DC3.7 V

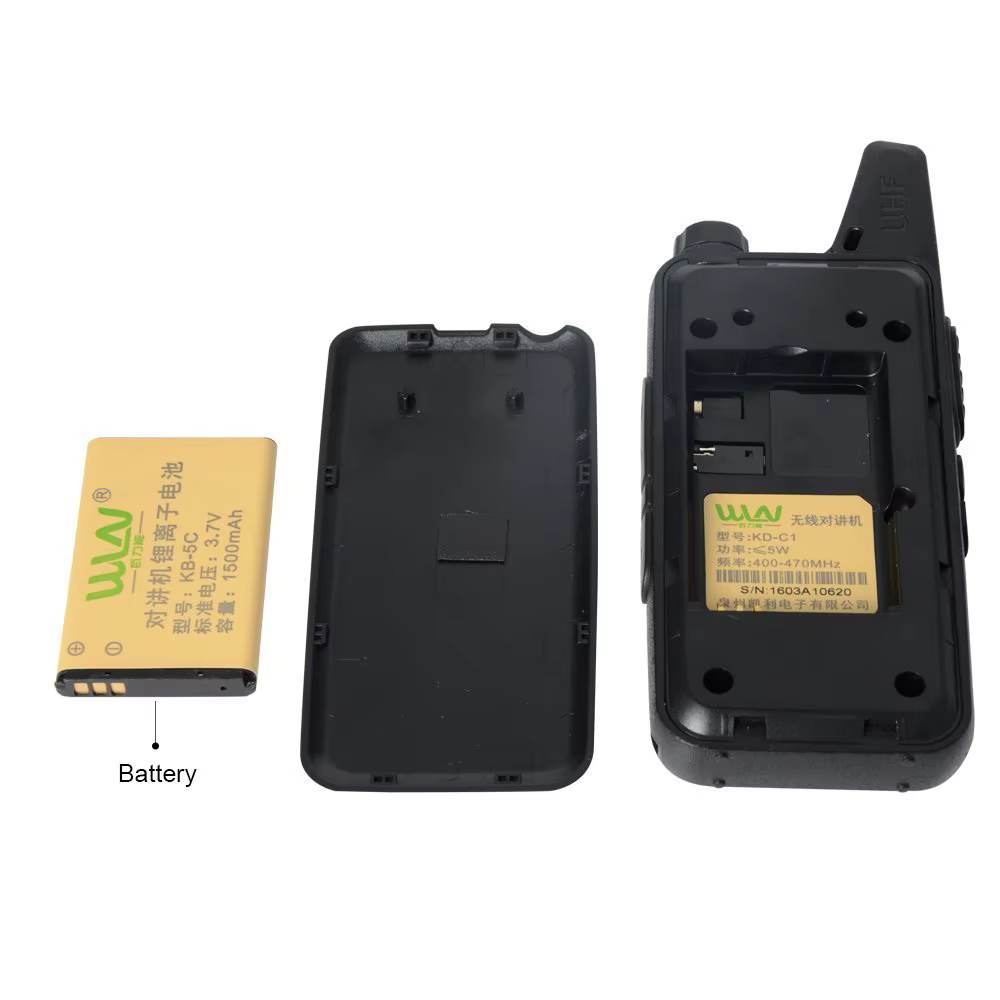

- Battery CapacityH-1500 mAh

- Battery Life: About 8 Hours

- Frequency Stability: 2.5ppm

- Work Temperature -20°C to +60°C

- Frequency Combination PLL frequency synthesis

- Antenna Impedance 50 ΩWok

- Mode Same Frequency simplex Operation or Different Frequency simplex Operation

- Dimension 97x57x29mm (Excluded Antenna)

- Transmitter: Output Power 5 W

- Modulation Mode(W/N Band) FM (F3E)

- Maximum Frequency Deviation (W/N Band)<5KHz(W), <2.5KHz(N)Spurious Power 7.5 W

- Adjacent channel power65dB (W) ,55dB (N)Spurious Radiation<-60 dBAudio Distortion<5 SNR45 dB(W), 42dB(N)CTSCC/DCS

- Frequency Deviation(W/N Band)0.7, 0.1KHz (W), 0.4, 0.1KHz (N)

- Transmitting Current 1200mA

- Receiver Sensitivity 0.20 V (12dB SINAD)

- Audio Power1 WInter modulation Interference Resistance 65dB (W), 55dB (N)

- Adjacent channel Sensitivity (W/N Band) 65dB (W), 55dB (N)Audio Distortion 5 Receiving Current 400m A
