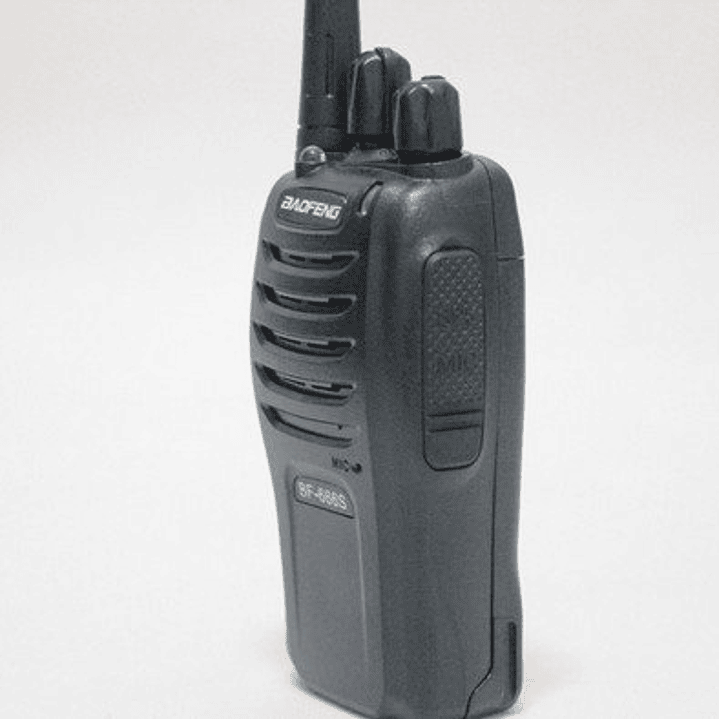

El Baofeng/Pofung BF-666S UHF es un radio semi profesional, de funcionamiento estable y desempeño confiable. Funciones adicionales tales como reducción de ruido hacen de este equipo una excelente alternativa para el trabajo.
Incluye: Radio, antena, cargador, clip
Ficha Técnica:
1) Salida: 4W
2) Frecuencia: 400.00-470.MHz
3) 16 Canales
4) Programable
5) Linterna
6) 50 CTCSS and 210 DCS Codes
7) Squelch Level
8) Battery Saving
9) VOX “Voice Operated Transmitting” Function
10) Busy Channel Lock
11) Advertencia de batería baja carga
12) Over Voltage or Low Voltage Protection
13) Channel Monitor
14) TOT (Time-out Timer)
15) Scrambling Function
16) Noise Reduction
17) Scanning Function
18) Dimensiones: 97x57x29 mm
Unity Section:
- Frequency Range: 400.00- 470.00MHz
- Storage Channel: 16
- Rated voltage: DC3.7 V
- Battery Capacity: H-1500 mAh
- Battery Life: About 8 Hours
- Frequency Stability: 2.5ppm
- Work Temperature: -20°C to +60°C
- Frequency Combination: PLL frequency synthesis
- Antenna Impedance: 50
- Wok Mode:
- Same Frequency simplex Operation or
- Different Frequency simplex Operation
- Dimension: 97x57x29mm (Excluded Antenna)
Transmitter:
- Output Power: 4 W
- Modulation Mode(W/N Band)
- FM (F3E)
- Maximum Frequency Deviation (W/N Band)
- <5KHz(W), <2.5KHz(N)
- Spurious Power: 7.5 W
- Adjacent channel power: 65dB (W), 55dB (N)
- Spurious Radiation: <-60 dB
- Audio Distortion: <5
- SNR: 45 dB(W), 42dB(N)
- CTSCC/DCS Frequency Deviation(W/N Band): 0.7 0.1KHz (W), 0.4 0.1KHz (N)
- Transmitting Current: 1200mA
Receiver:
- Sensitivity: 0.20 V (12dB SINAD)
- Audio Power: 1 W
- Inter modulation Interference Resistance: 65dB (W), 55dB (N)
- Adjacent channel Sensitivity (W/N Band): 65dB (W), 55dB (N)
- Audio Distortion: 5 %
- Receiving Current: 400m A
